Product introduction

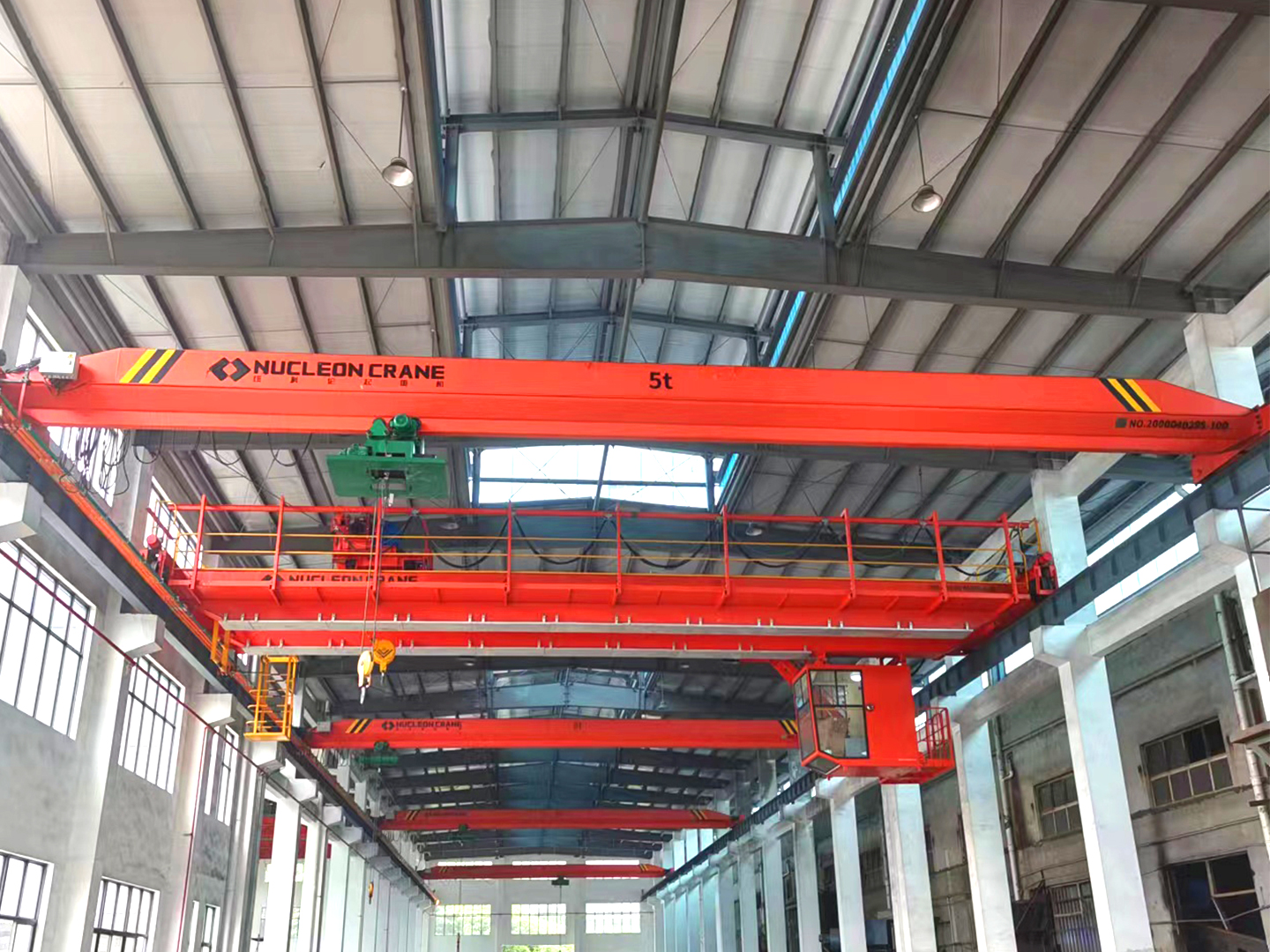

Overhead crane for metallurgy is the Nucleon-developed special crane in response to the lifting of molten metal in the harsh environment of the metallurgical industry. It has the characteristics of safety, reality, durability, efficiency and multipl
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
Overhead crane for metallurgy is designed with many technologies such as multiple protection, redundant mechanism and advanced control. Electric hoist for metallurgy can be used for small tonnage (less than 16t) and special trolley for metallurgy can be used for large tonnage (16t and above). The traveling mechanism adopts special motor reducer for metallurgy, and various speed control systems can be used for control as required.
The crane for metallurgy includes electric hoist for metallurgy, single beam crane for metallurgy, overhead crane for metallurgy and so on.
Product Features:
(1)Safe and reliable.
(2)Durable.
(3)Efficient and convenient.
(4)Multiple protection measures.
Performance Parameters:
Lifting capacity: 2t～74t
Span: 5m～40m
Lifting height: 9m～30m
Work level: A6～A7
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
